Jason, Sorry I should have been more specific. Inside the for loop, right above the "if" test for whether Revit thinks it can mirror it. So it looks like:
foreach (Element elem in elems) { if (elem.Category == null) continue; if (ElementTransformUtils.CanMirrorElement(uiDoc.Document, elem.Id) == false) continue; toMirror.Add(elem.Id);}
Is there a way to iterate thru the drafting views in a project, and mirror each one of them. I really dont want to open each drafting views one at a time and then run the addin.
Sure - pretty easy Revit API stuff to do a collector and iterate thru.
3:38 PM
So I was asked if it was possible to mirror a drafting view using the API (apparently the built-in project mirroring doesn't cover drafting views).
It seemed straightforward enough... so I wrote a quick test... and it didn't work... - it worked fine in a floor plan view - it didn't work in a drafting view - the code completed just fine - it just didn't really seem to show any difference.
My initial code is below... - Get all the elements in the current view - Use the new ElementTransformUtil class to figure out which could be mirrored, and mirror them.
FilteredElementCollector coll = new FilteredElementCollector(uiDoc.Document, uiDoc.ActiveView.Id);
IList elems = coll.ToElements();
// make sure that stuff can be mirrored List toMirror = new List();
foreach (Element elem in elems) { if (ElementTransformUtils.CanMirrorElement(uiDoc.Document, elem.Id) == false) continue; toMirror.Add(elem.Id); }

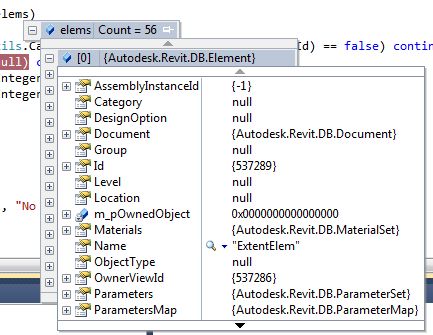

So why did this complete successfully, but not show any difference? The answer is one of those great undocumented elements in the wilds of the Revit database. When I looked in the debugger at what I was actually attempting to mirror, I saw this: [Image]
What I see here is a mystery element called "ExtentElem" which is being copied. I have a sneaking suspicion that it might be telling the view the actual extent of what is in it... So how can we exclude it? well - it has no actual category (which is probably a sign that in general we don't want to mirror an element like that!). So - we add a line like: if (elem.Category == null) continue; and voila! we have our drafting view being mirrored.
I wish that I could say that all Revit database mysteries are "easily" solvable like this - there's plenty of times where you just run into a wall, and can't get to what you want... but today's story has a happy ending!
"An oddity with Drafting View mirroring"
6 Comments -
Matt, where did you add the "if (elem.Category == null) continue;" to your script.
10:26 AM
Jason,
Sorry I should have been more specific. Inside the for loop, right above the "if" test for whether Revit thinks it can mirror it. So it looks like:
foreach (Element elem in elems)
{
if (elem.Category == null) continue;
if (ElementTransformUtils.CanMirrorElement(uiDoc.Document, elem.Id) == false) continue;
toMirror.Add(elem.Id);}
12:20 PM
matt,
Next question could the code be written to mirror multile views at once.
11:44 PM
Sure. Standard Revit API.
11:46 PM
Is there a way to iterate thru the drafting views in a project, and mirror each one of them. I really dont want to open each drafting views one at a time and then run the addin.
3:17 PM
Sure - pretty easy Revit API stuff to do a collector and iterate thru.
3:38 PM
